Application

• 1991-1992 Mitsubishi Galant VR-4 with 2.0L 4G63T Turbocharged Engine

Features

• Upgraded turbo manifold for Mitsubishi Galant VR-4 4G63T engine
• OE turbo flange compatible with Mitsubishi TD05 / T517T / T518Z turbochargers
• Engineered as a direct bolt-on replacement for easy installation and improved performance
• Ram-style equal length turbo manifold allows faster turbo spool and improved throttle response
• Tubular design improves exhaust flow and increases top-end power
• Equal length runners for balanced exhaust reversion and enhanced turbo performance
• Flat 4-hole engine flanges shaped for precise engine fitment
• Precision-aligned tubes made of Schedule 40 cast 304 stainless steel, 3mm thick walls
• Head flanges laser-cut from high-quality 1/2-inch thick steel plates
• Flanges flattened by hydraulic press for precise, leak-free sealing

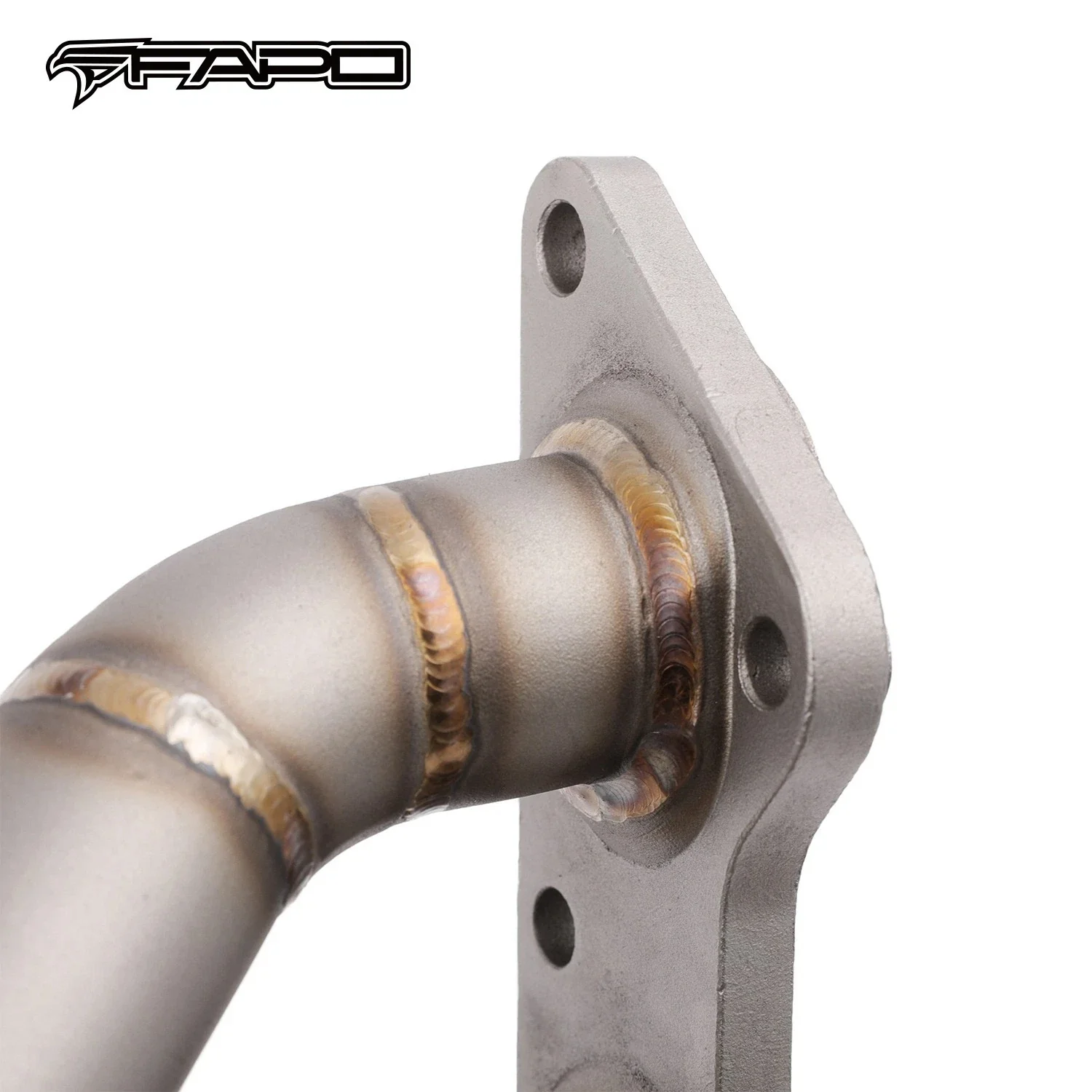

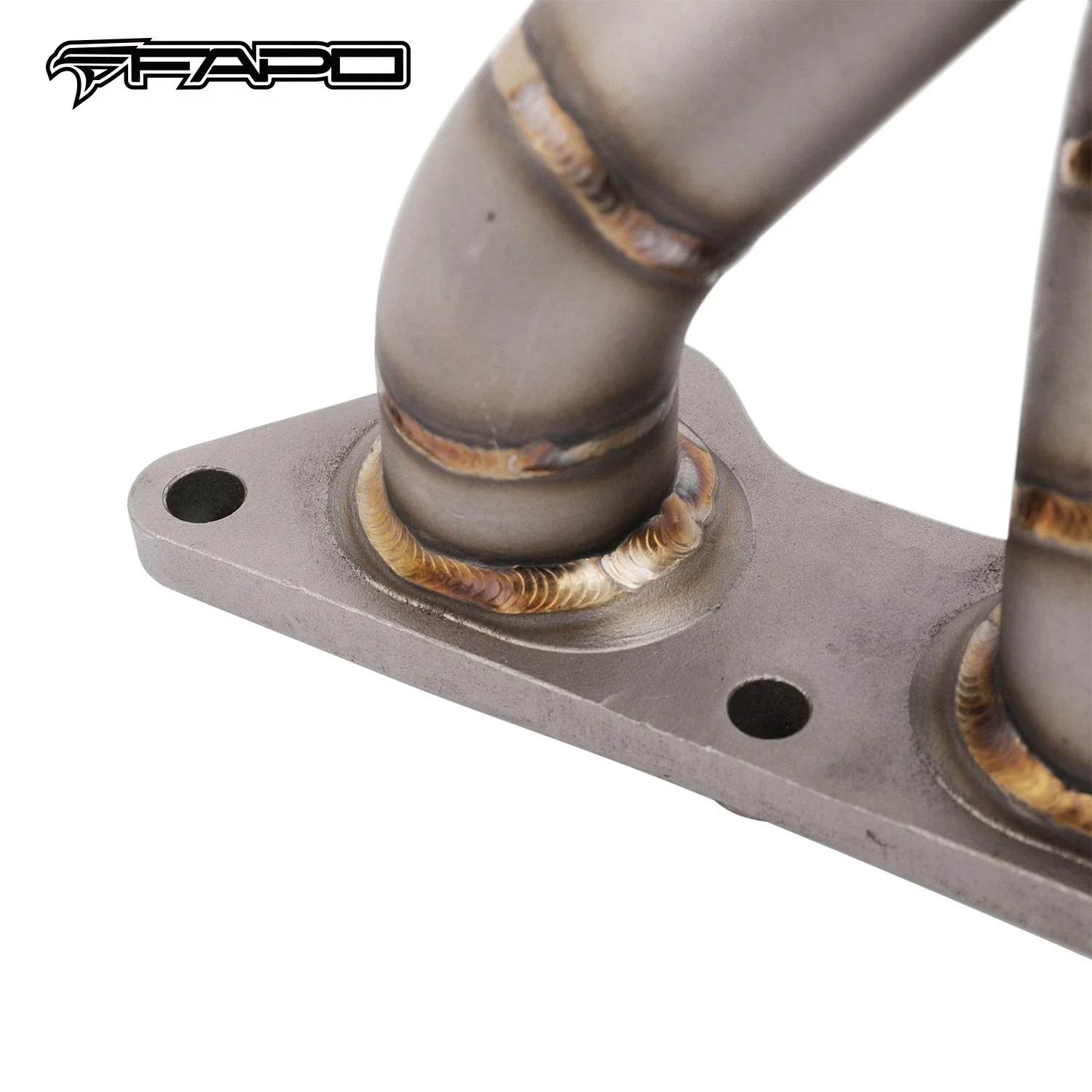

• Golden TIG brass-style welds to prevent cracking and wear
• Chrome-plated flanges for corrosion resistance
• Sandblasted surface finish for added hardness and durability

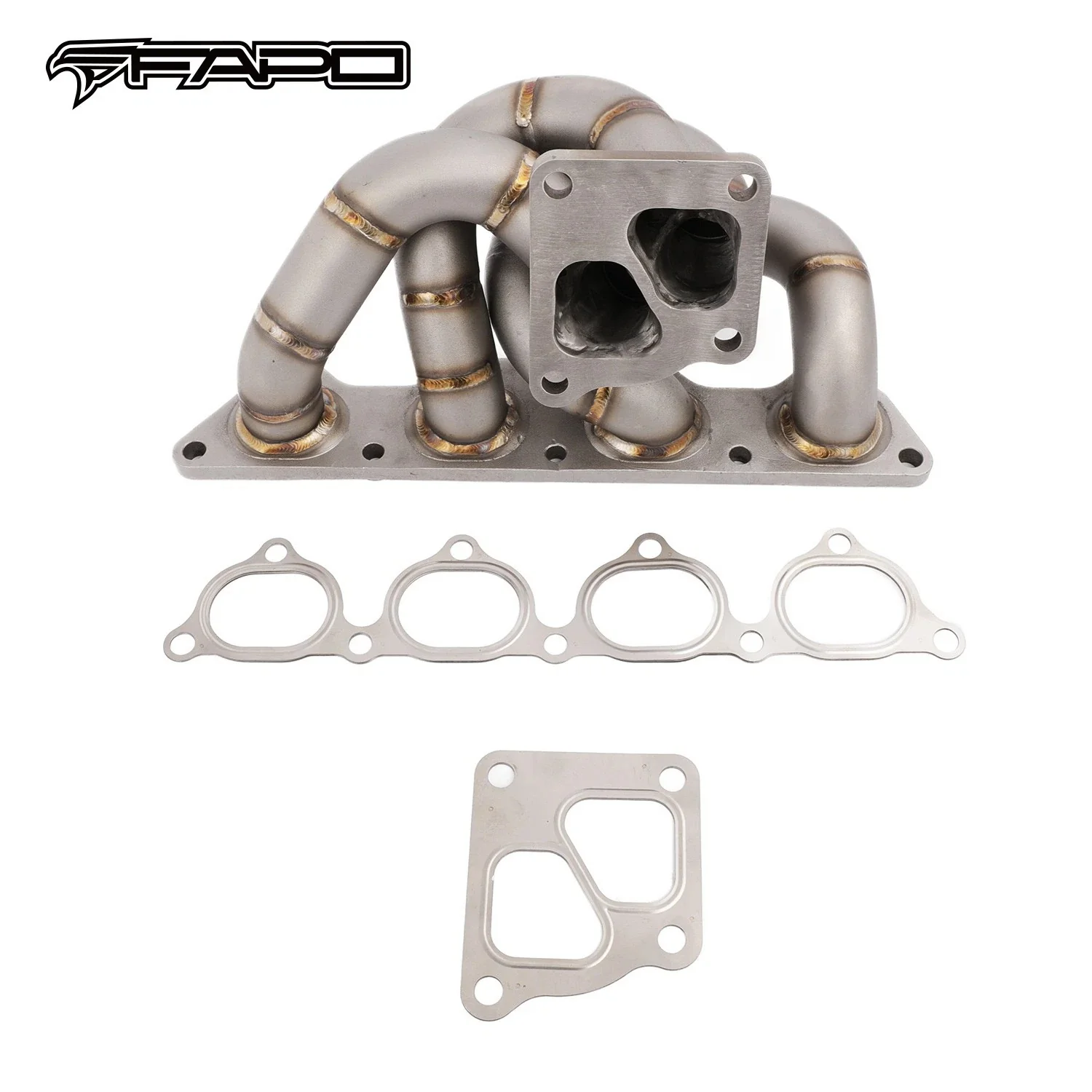

• Includes all accessories shown in photos
• 1-year warranty for manufacturing defects
• No instructions included; professional installation recommended

Technical Specifications

• Manifold Type: Tubular Turbo Manifold
• Runner Diameter: 1-5/8 in. (42mm)
• Runner Layout: Equal Length
• Turbo Fitment: TD05 / T517T / T518Z
• Head Flange Thickness: 1/2 in. (13.5mm)
• Pipe Thickness: Schedule 40 (3mm)
• Material: 304 Stainless Steel
• Finish: Sandblasted
