Application:

• 2008-2015 Mitsubishi Lancer Evolution 10 / X with 2.0L 4B11T Turbocharged Engine (MR / RS / GSR / SE / Final Edition)

Features:

• A great upgrade for your Mitsubishi Evolution 4B11T engine

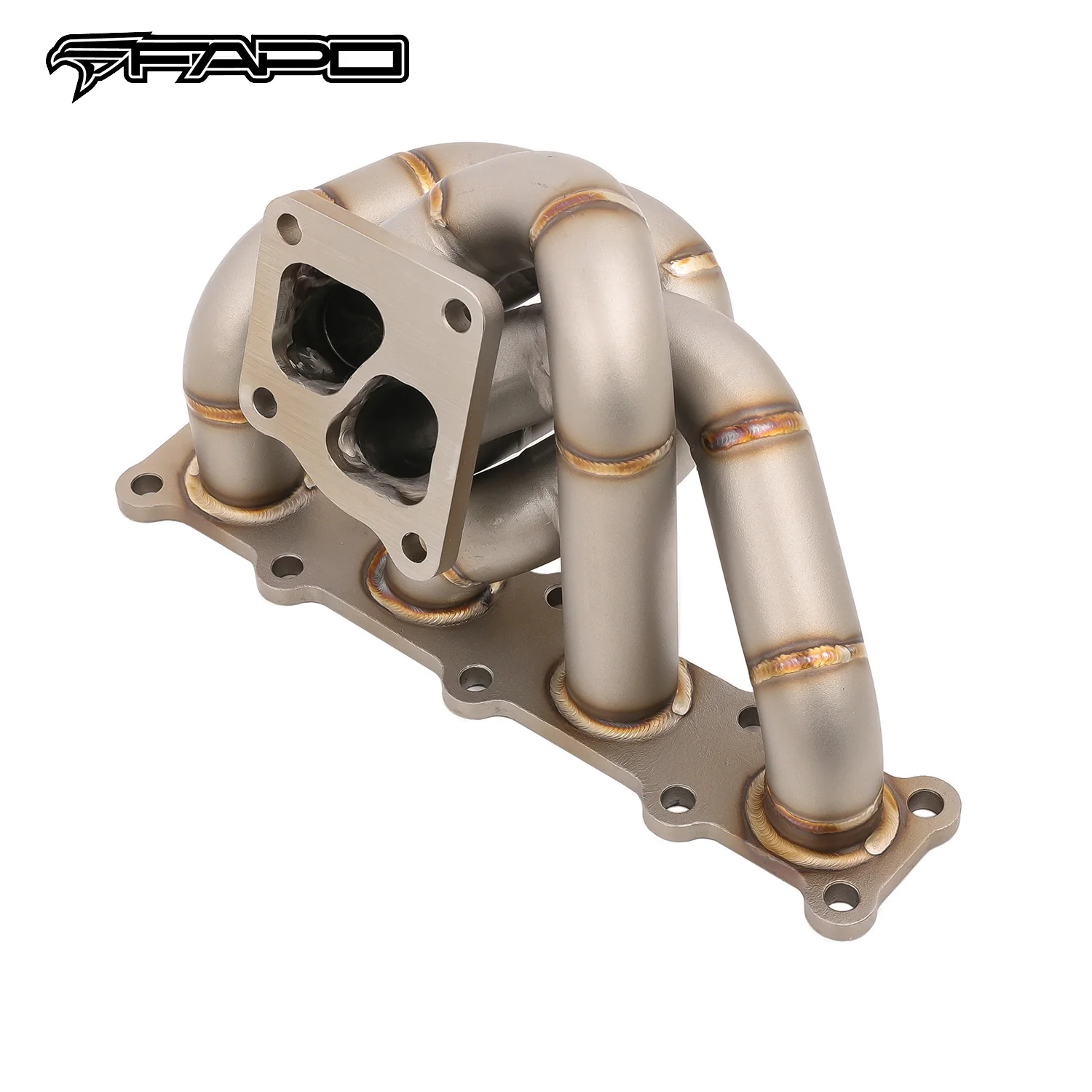

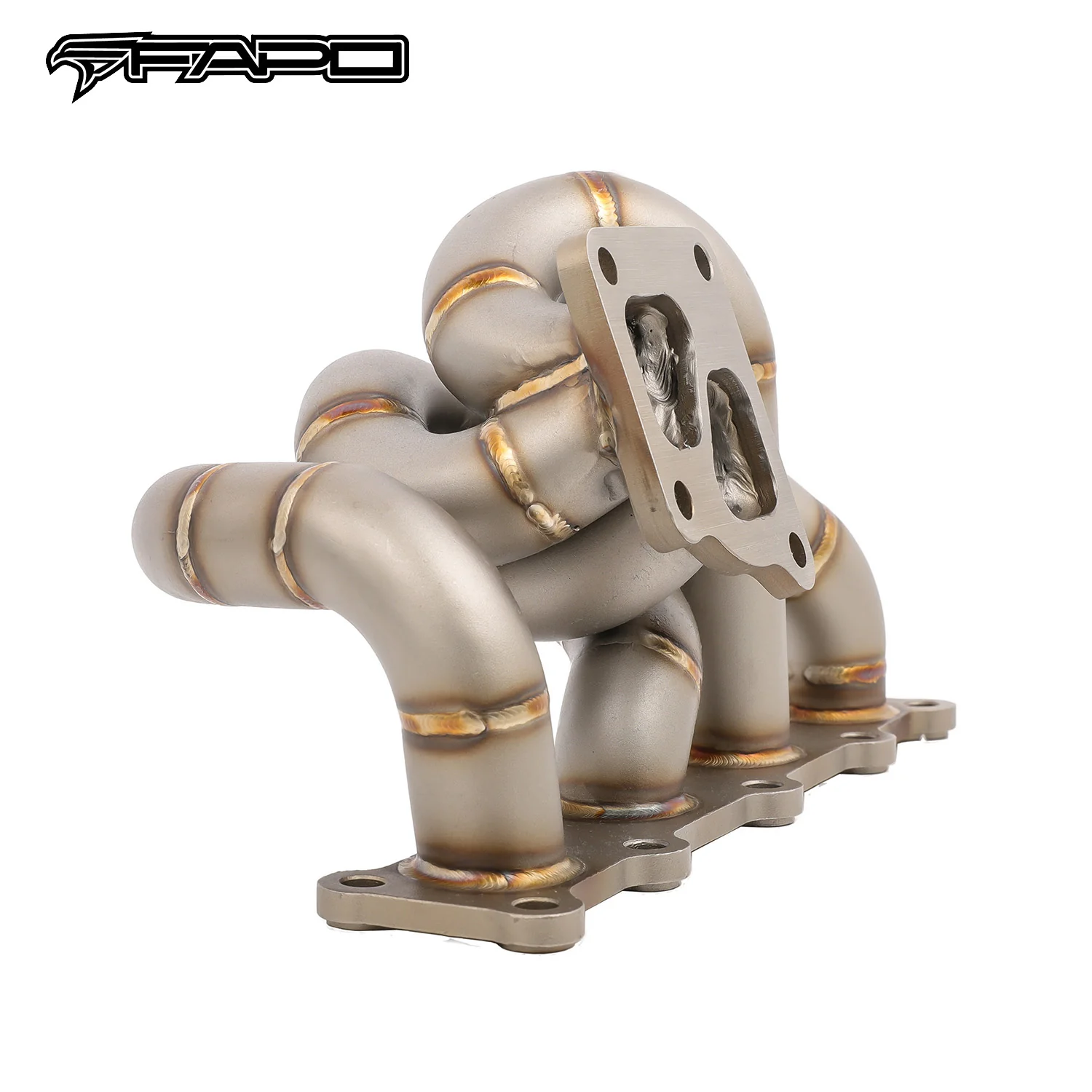

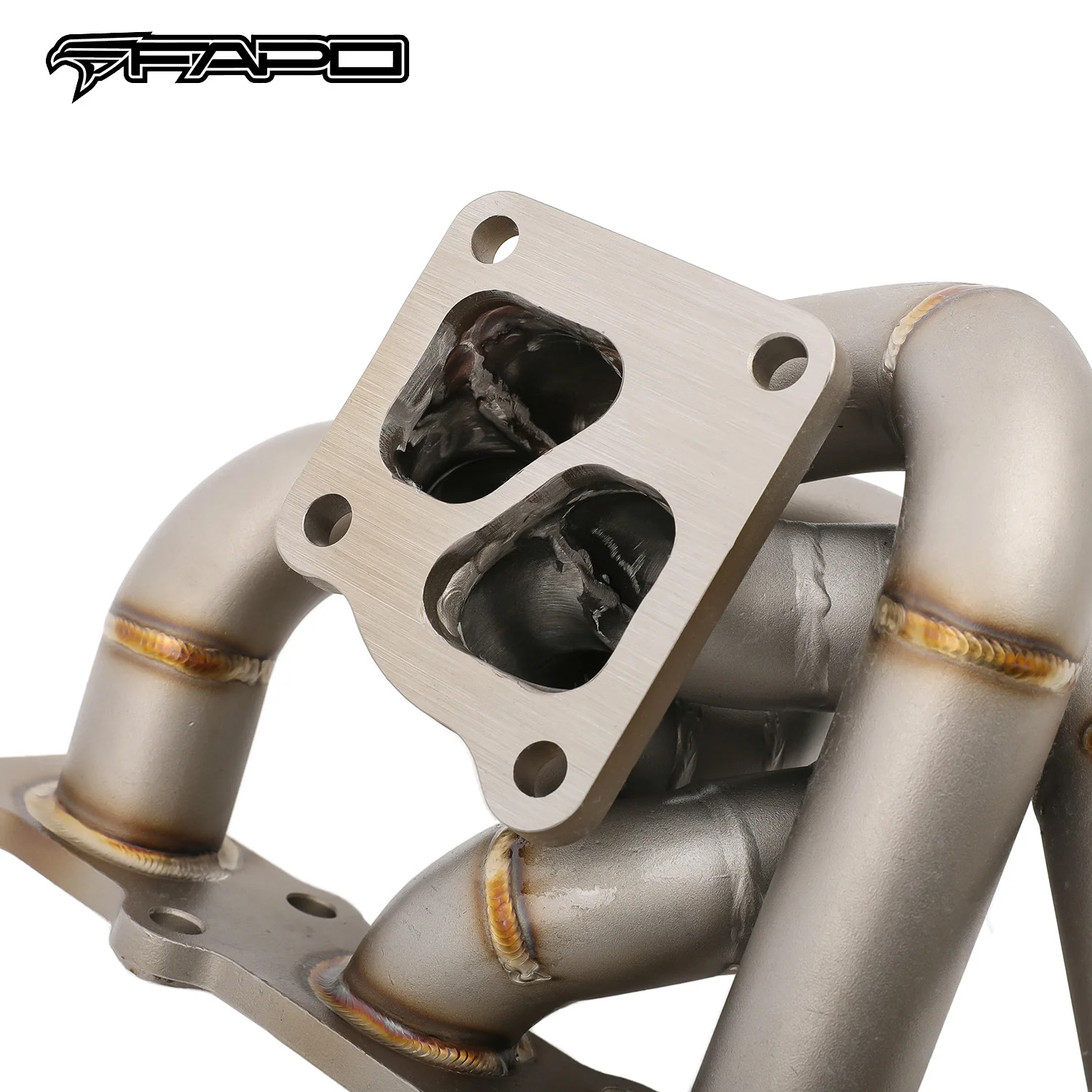

• OE turbo flange for Mitsubishi TD05 / T517T / T518Z turbocharger
• Excellent quality and durability to improve vehicle performance, engineered to be bolt-on replacement for easy installation

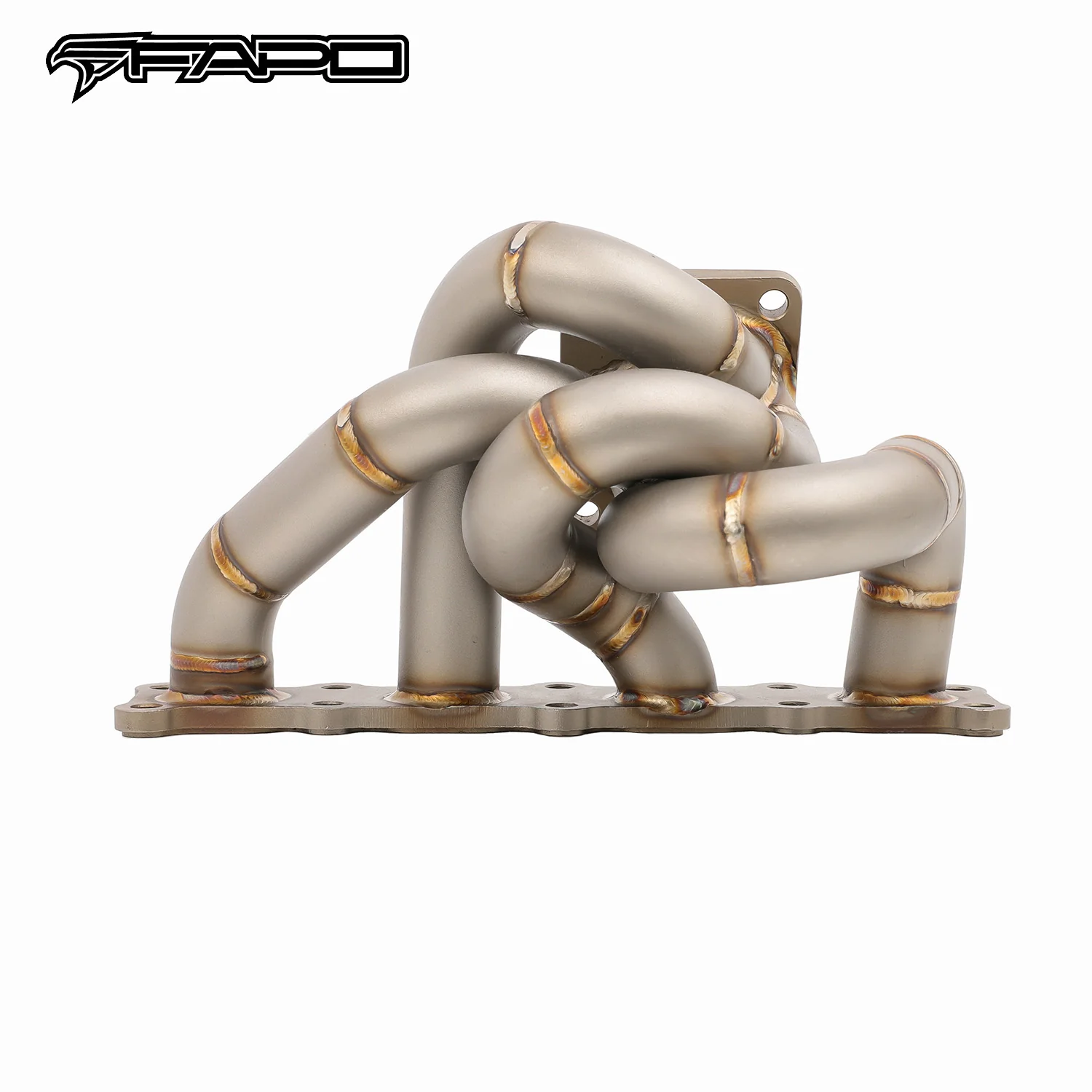

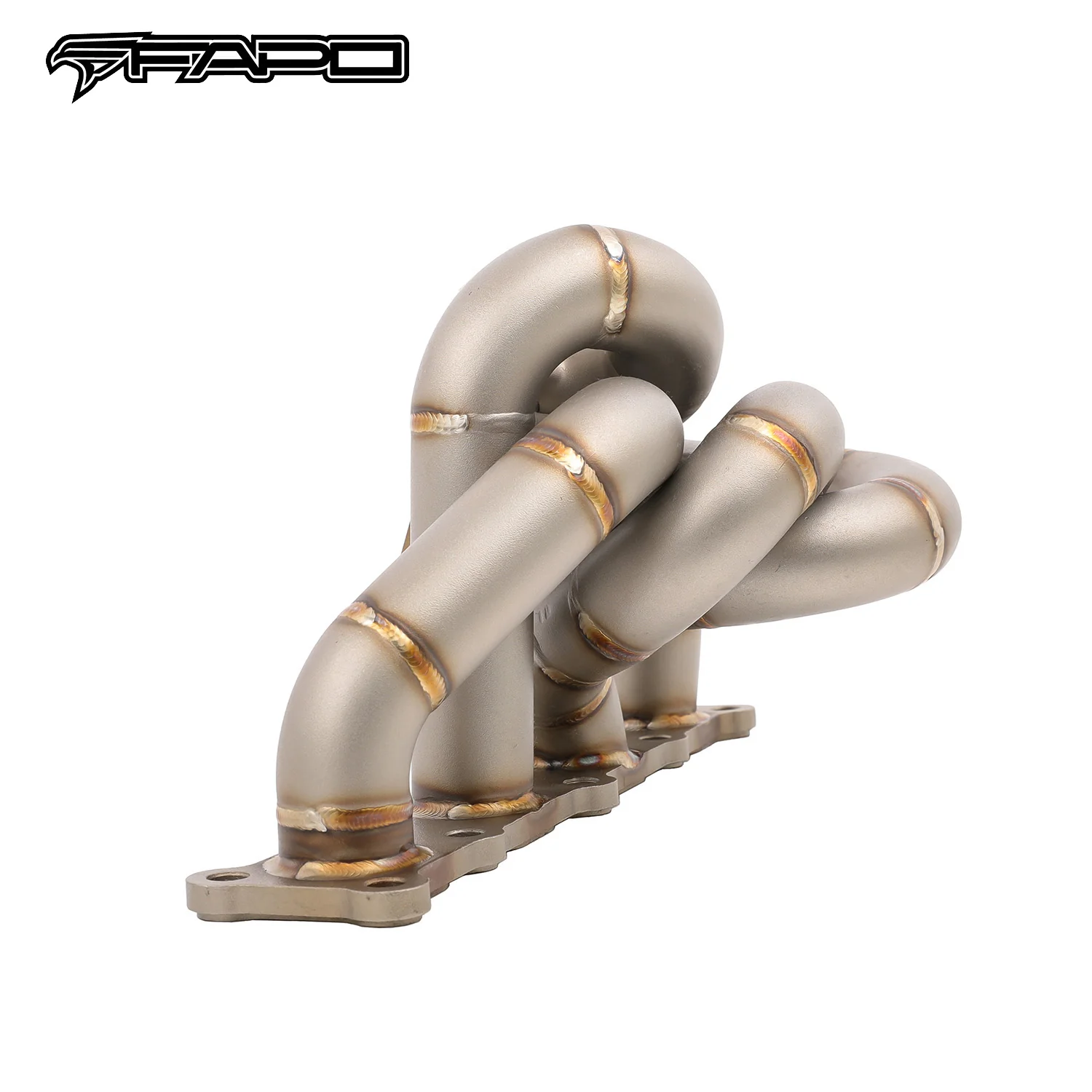

• Ram style equal length turbo manifold, allows turbo spool faster and throttle response
• Tubular manifold design with better exhaust flow and delivers more top end power
• Equal length runners for balanced exhaust reversion and enhanced turbo performance

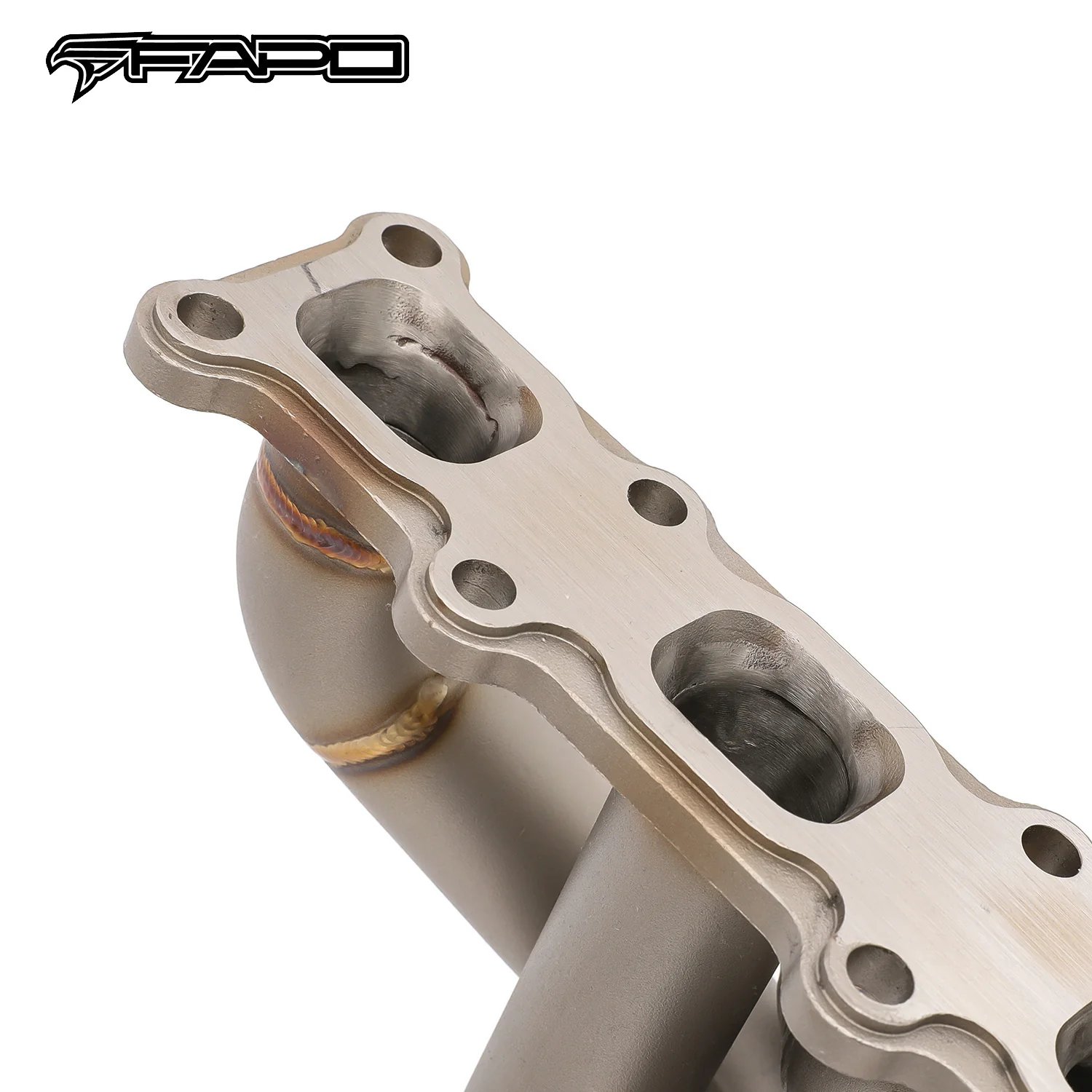

• Flat 4-hole engine flanges, after special process shaping, more suitable for engine installation position
• Precision aligned tubes made of schedule 40 cast 304 stainless steel, 3 mm thick wall
• Head flanges laser-cut from high quality 1/2-inch thick steel plates
• Flange flattened by hydraulic press for precise and leak-free sealing

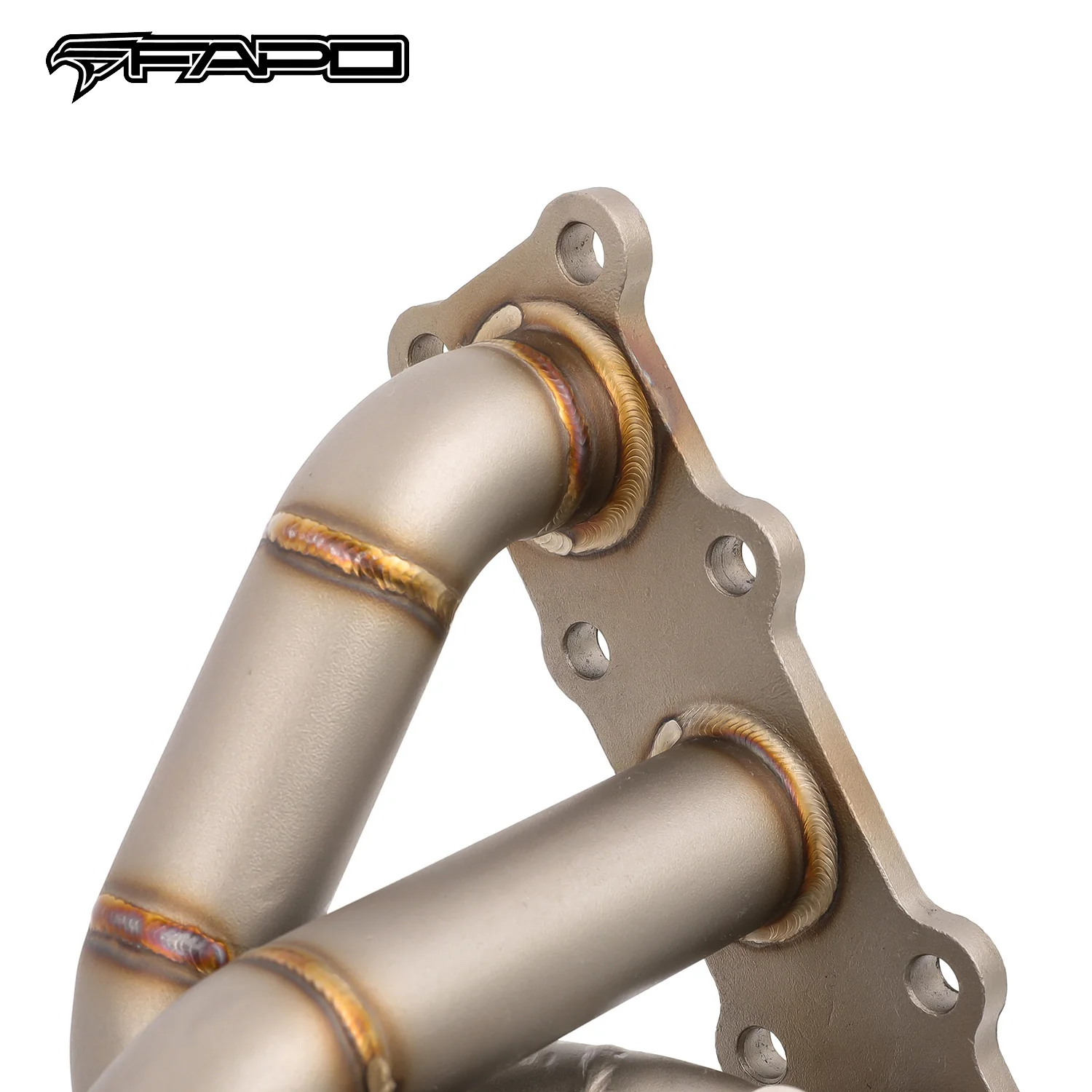

• All joints are golden color TIG brass style welded to prevent cracking and wear
• Flanges chrome plated for corrosion resistance
• Sandblasted surface for extra hardness
• Accessories shown in the photos are included
• 1-year warranty for any manufacturing defect
• No instructions provided; professional install recommended

Technical Specifications:

• Manifold Type: Tubular Turbo Manifold
• Runner Diameter: 1-5/8 in. (42mm)
• Runner Layout: Equal Length
• Turbo Fitment: TD05 / T517T / T518Z
• Head Flange Thickness: 1/2 in. (13.5mm)
• Pipe Thickness: Schedule 40 (3mm)
• Material: 304 Stainless Steel
• Finish: Sandblasted
