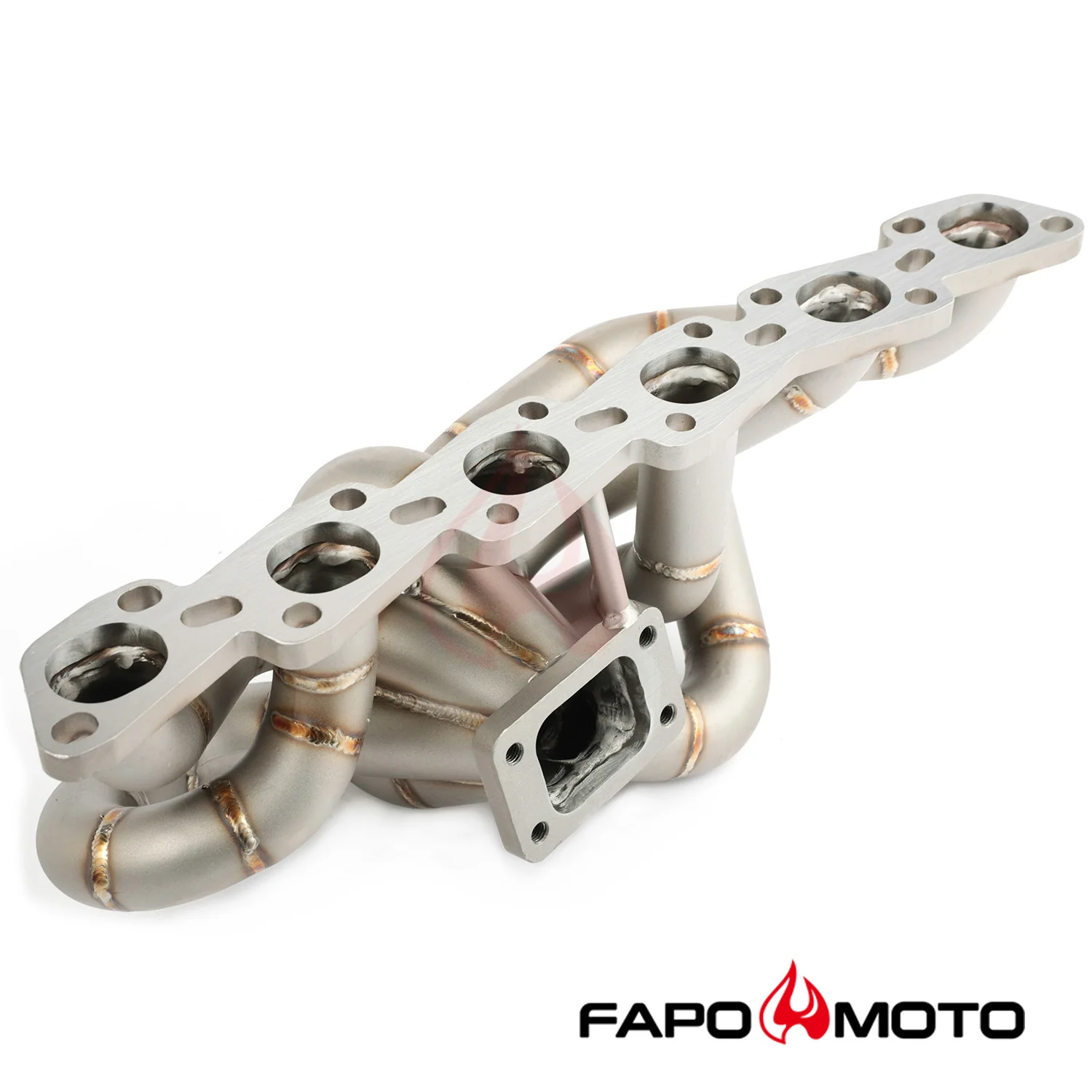

Application:

• Compatible with Nissan RB20DET and RB25DET Motors (Skyline R31, R32, R33, R34, Fairlady 200ZR, etc.)
• T3 Flange for all T3 Turbochargers
• Flange for 44mm V-band Wastegate

Features:

• Fits T3 Turbo Flange and 44mm Wastegate Flange
• Excellent quality and durability to improve vehicle performance, engineered to be bolt-on replacement for easy installation
• Ram style equal length turbo manifold allows turbo to spool faster and improves throttle response
• Flat 6-hole engine flanges, after special process shaping, more suitable for engine installation position
• Tubular manifold design with better exhaust flow and delivers more top-end power
• Equal length runners for balanced exhaust reversion and enhanced turbo performance
• Precision aligned tubes made of schedule 40 cast 304 stainless steel, 3 mm thick wall

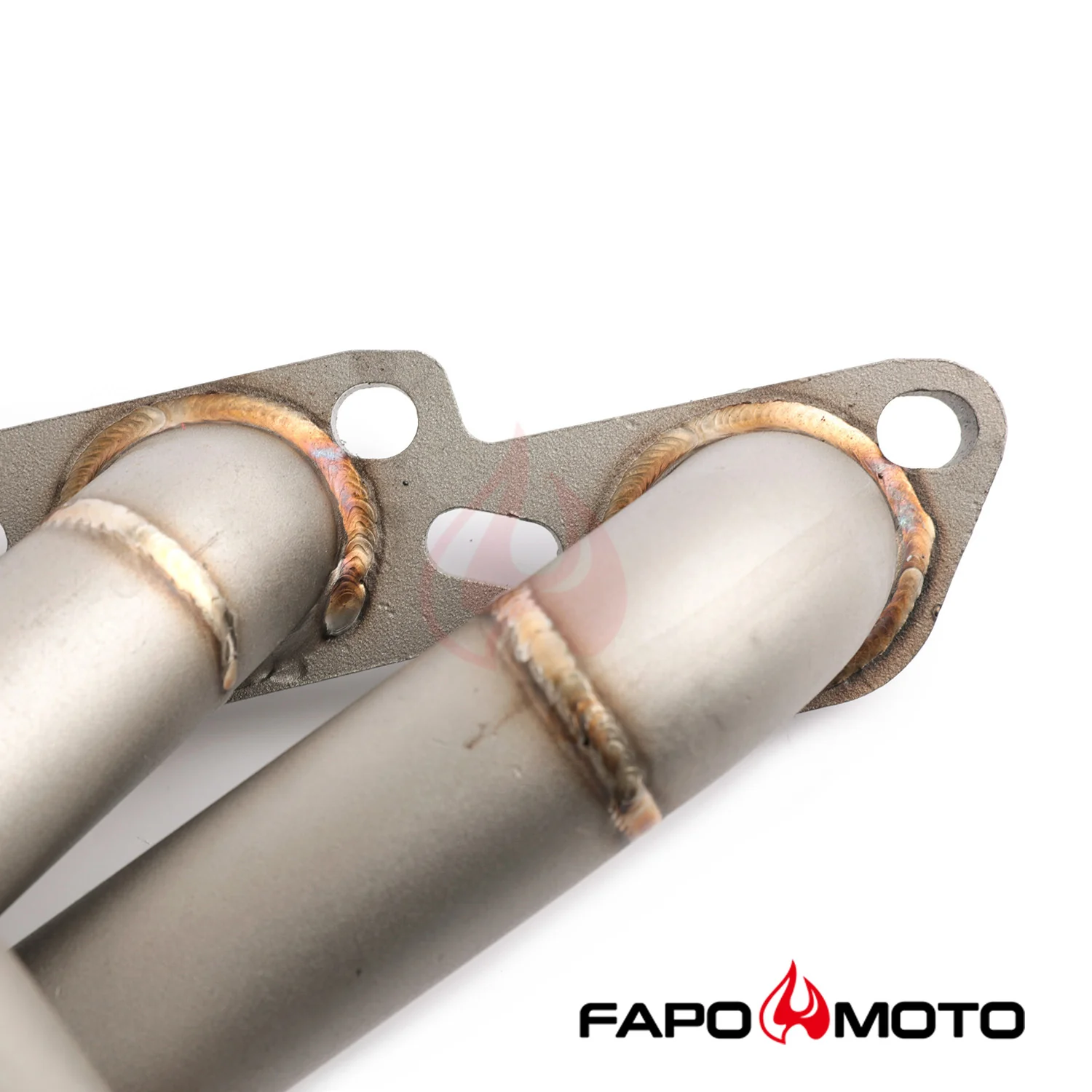

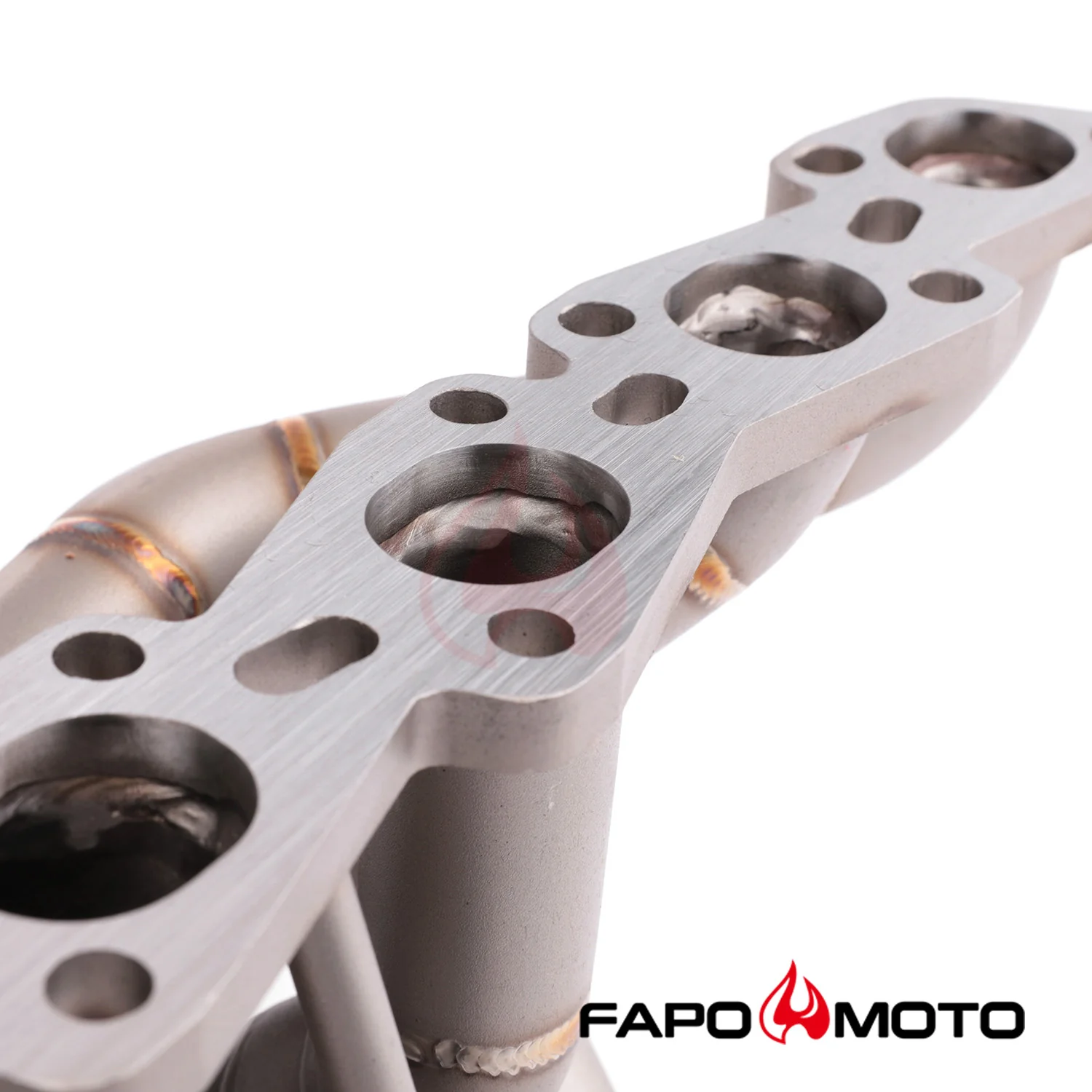

• Head flanges laser-cut from high quality 1/2-inch thick steel plates
• The flange is flattened by a hydraulic press for precise and leak-free sealing

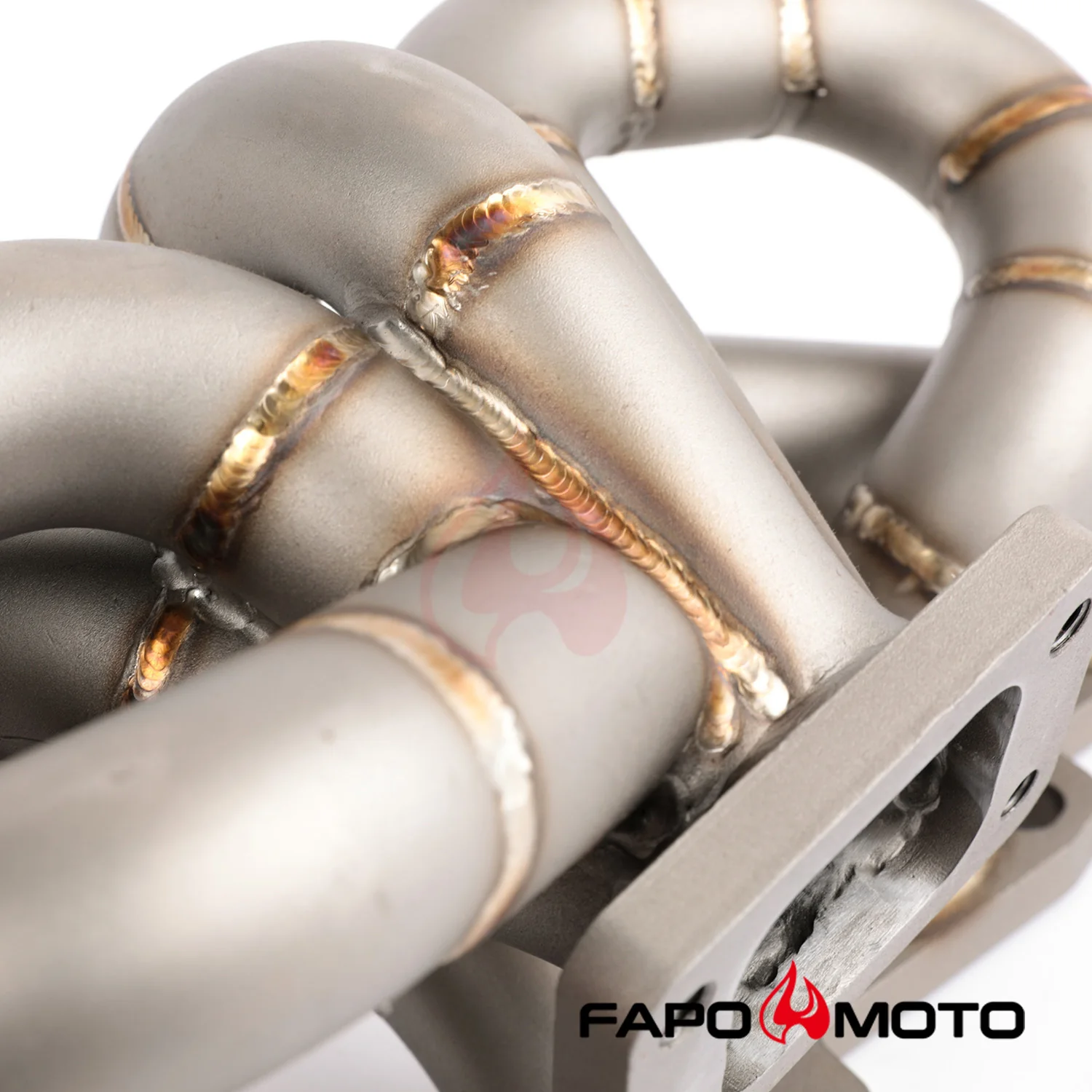

• All joints are golden color TIG brass style welded to prevent cracking and wear
• Flanges chrome plated for corrosion resistance
• Sandblasted surface for extra hardness

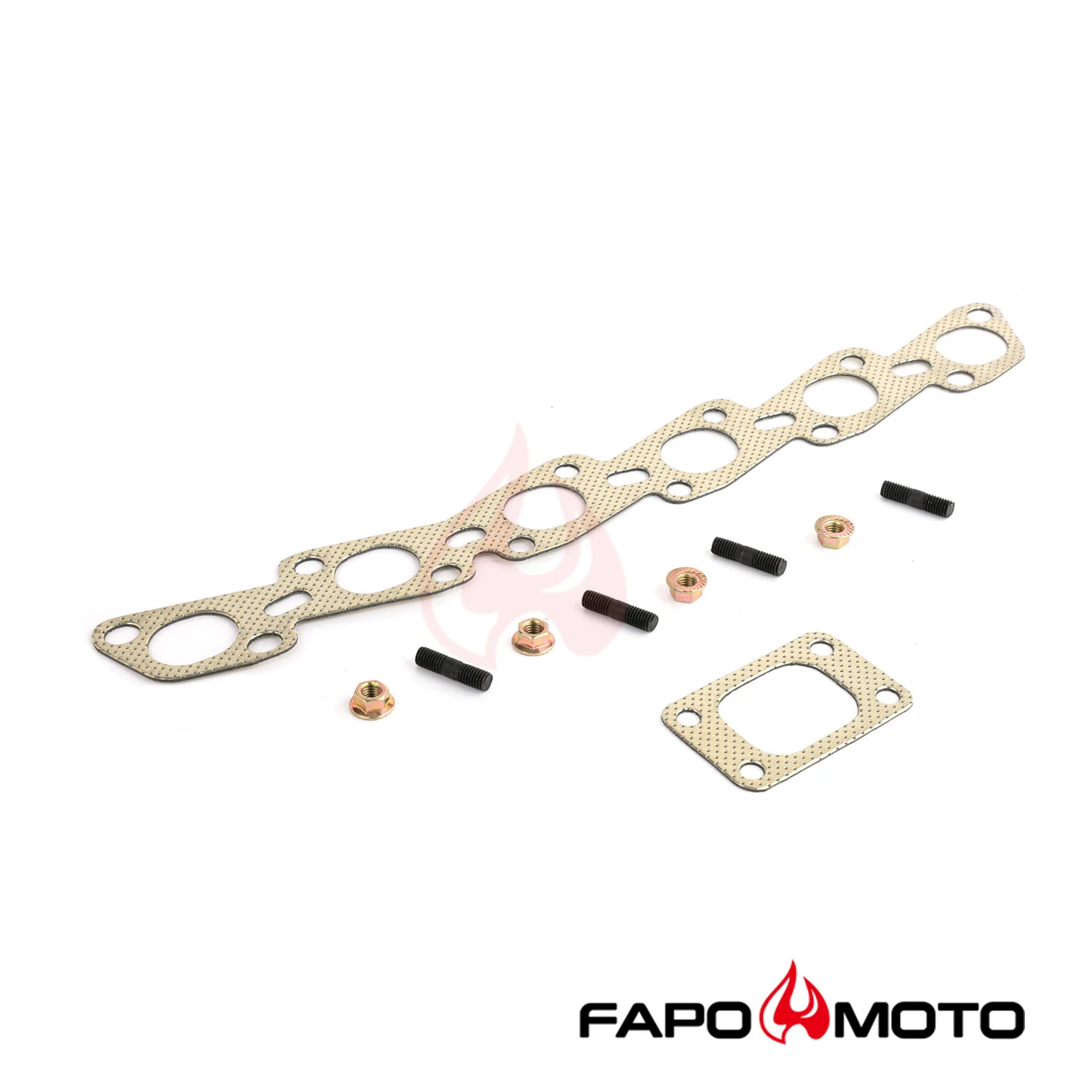

• The accessories in the photos are included
• 1 year warranty for any manufacturing defect
• No instructions provided; professional install recommended

Technical Specifications:

• Manifold Type: Tubular Turbo Manifold
• Runner Diameter: 1-3/4 in. (45 mm)
• Runner Layout: Equal Length
• Turbo Fitment: T3
• Turbo Mount Position: Top Mount
• Wastegate Fitment: 44mm (V-band)
• Head Flange Thickness: 1/2 in. (13.5 mm)
• Pipe Thickness: Schedule 40 (3 mm)
• Material: 304 Stainless Steel
• Finish: Sandblasted
