Application:

• For 1988-1998 Chevy/GMC trucks & SUVs
• For 265-400 small block V8 engine with single turbo conversion
• For F/A/G/B/X-body cars
• For turbo setup; NOT direct fit

Features:

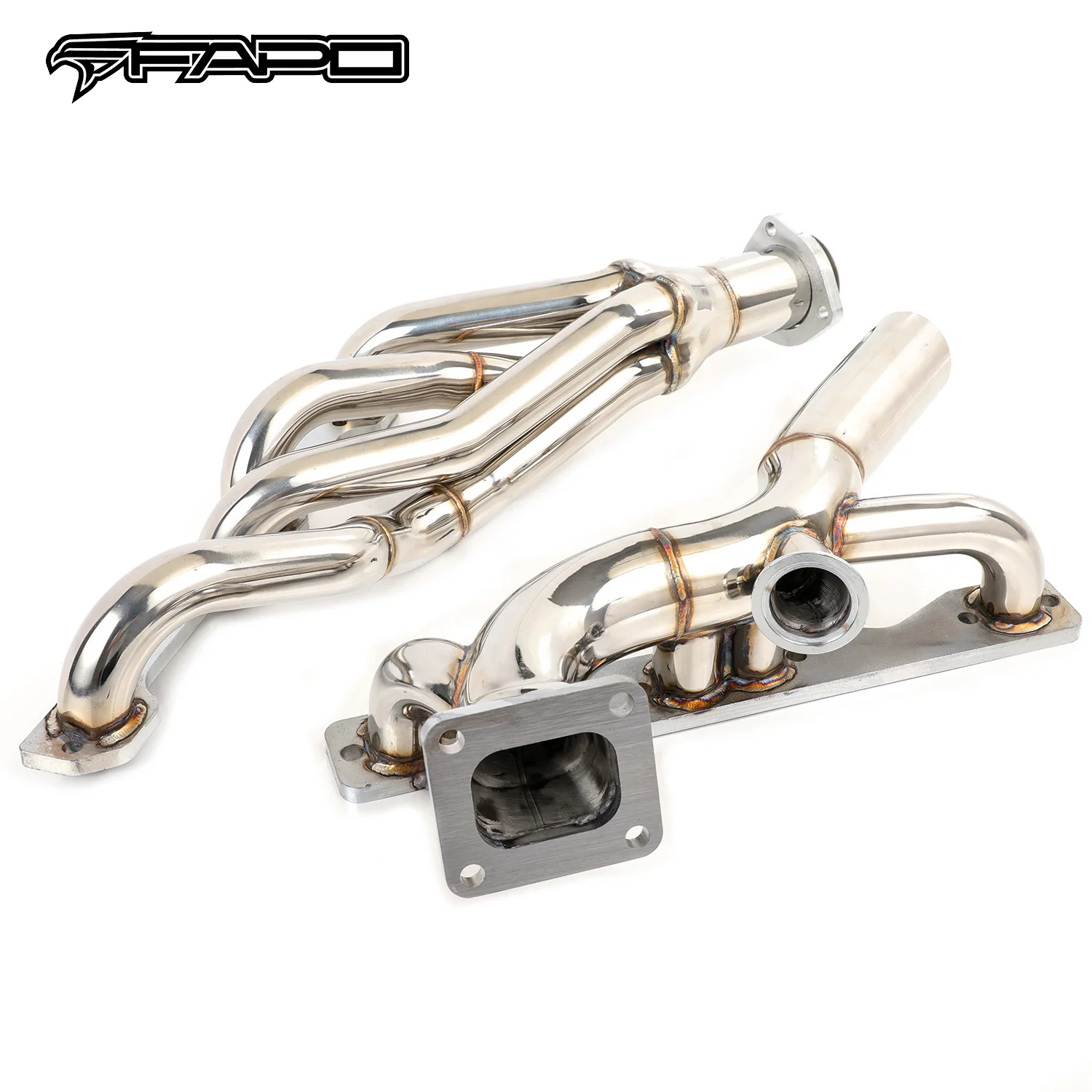

• Top mount T4 single top mount with Crossover Pipe, Version II UPGRADED, 304 Stainless Steel, single T4 turbo headers with 44mm flange
• Excellent quality and durability to improve vehicle performance
• Shorty design for power gain from idle to mid-range RPM
• Fully mandrel bent tubes made of high quality 16-gauge 304 stainless steel
• Head flanges laser-cut from high quality 7/16-inch thick steel plates
• The flange is flattened by a hydraulic press for precise and leak-free sealing
• All joints are golden color TIG brass style welded to prevent cracking and wear
• Flanges chrome plated for corrosion resistance
• Polished surface for extra protection against rusting

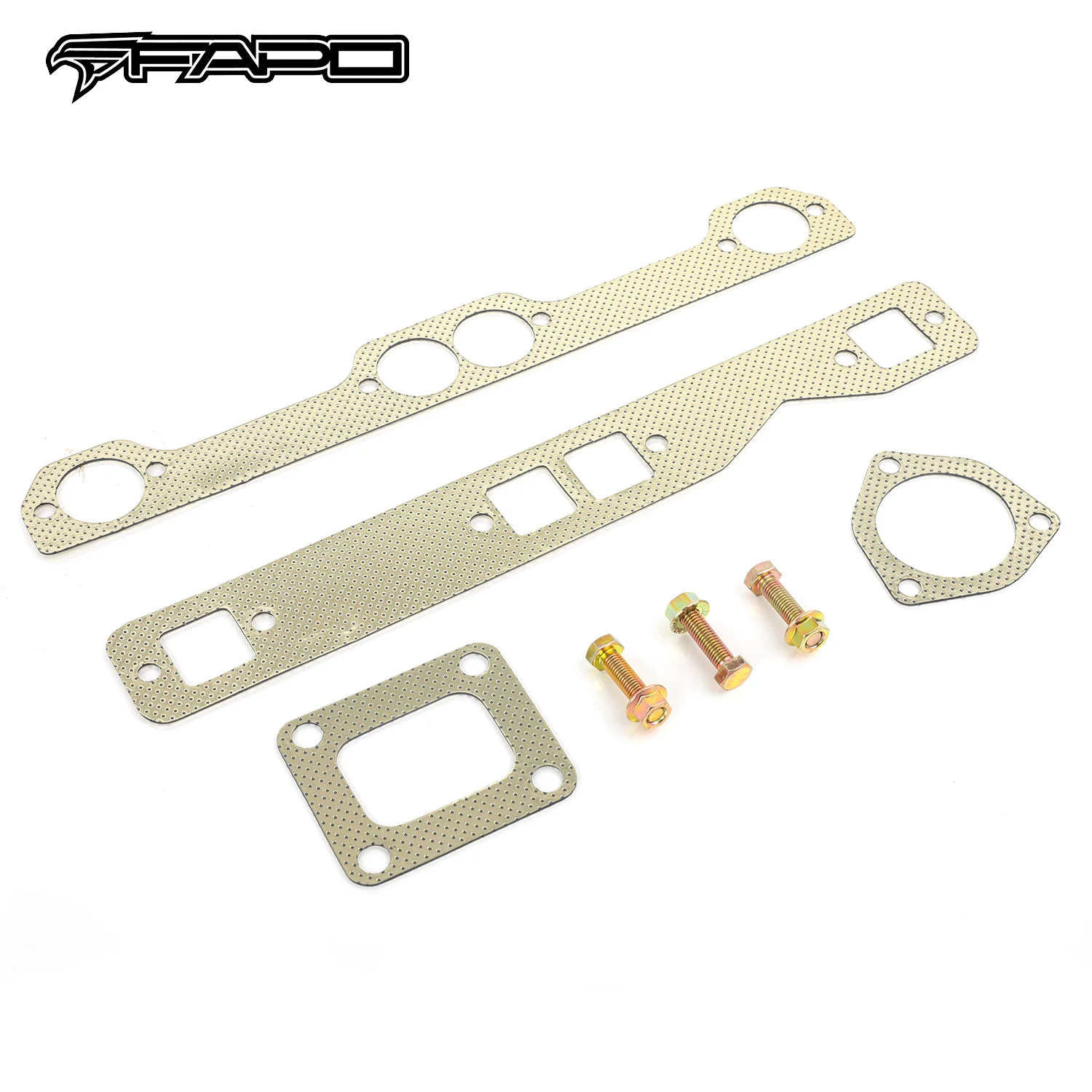

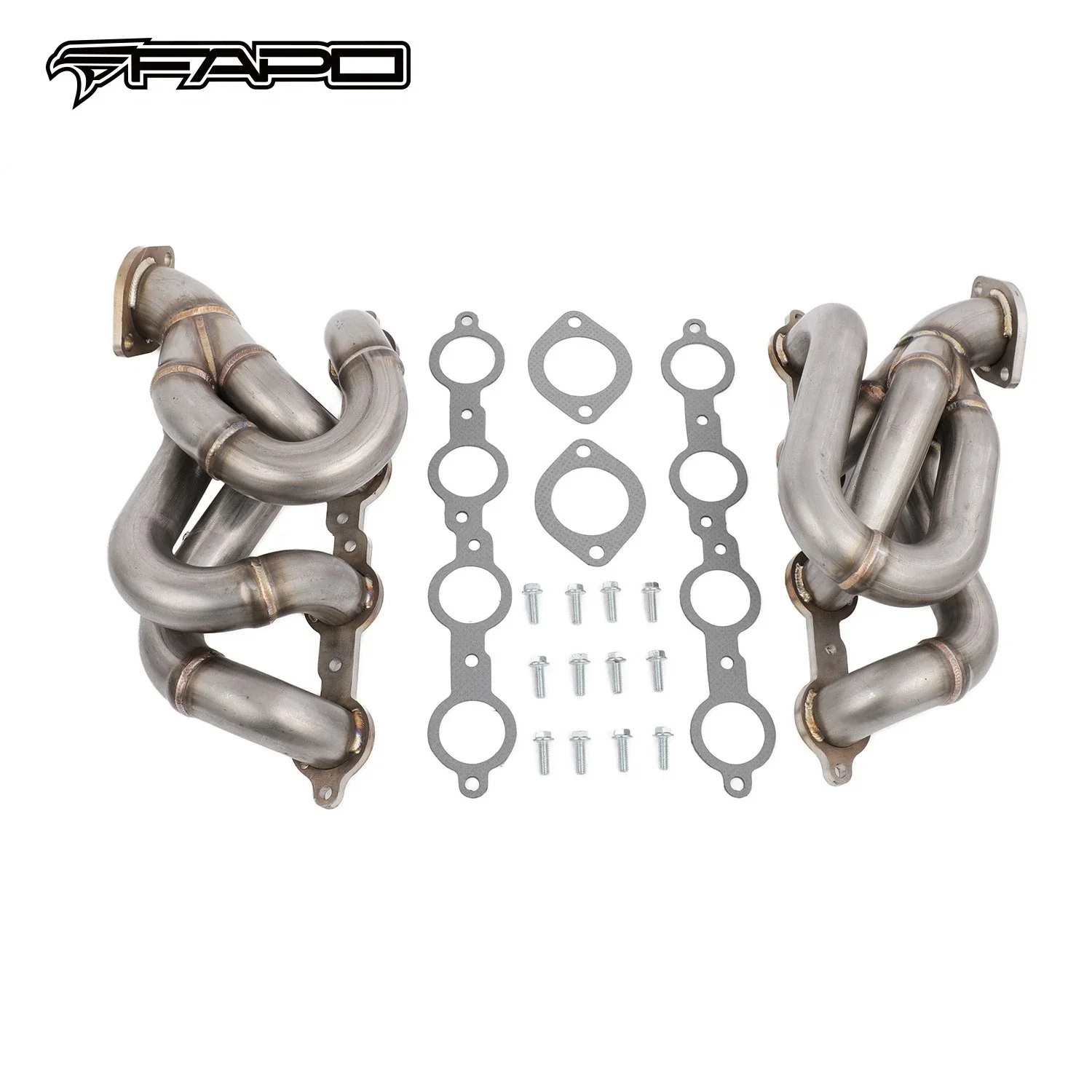

• The accessories in the photos are included
• 1 year warranty for any manufacturing defect

Technical Specifications:

• Header Type: Turbo
• Primary Diameter: 1-5/8 in. (42 mm)
• Collector Diameter: 2-1/2 in. (64 mm)
• Crossover Pipe Diameter: 2-1/2 in. (64 mm)
• Turbo Fitment: T4
• Wastegate Fitment: 44 mm
• Head Flange Thickness: 7/16 in. (11.5 mm)
• Pipe Thickness: 16 gauge (1.5 mm)
• Material: 304 Stainless Steel
• Finish: Polished
