Application

• 1990-2001 Acura Integra with 1.6L/1.8L B16/B18 DOHC VTEC
• 1999-2000 Honda Civic Si/EX-R SIR Coupe with 1.6L/1.8L B16/B18 DOHC VTEC
• 1994-1997 Honda Civic del Sol VTEC Coupe with 1.6L/1.8L B16/B18 DOHC VTEC
• For B16/B18 DOHC VTEC motors only
• NOT compatible with stock A/C and P/S

Features

• Fits T3 or T3/T4 hybrid turbo
• Excellent quality and durability to improve vehicle performance

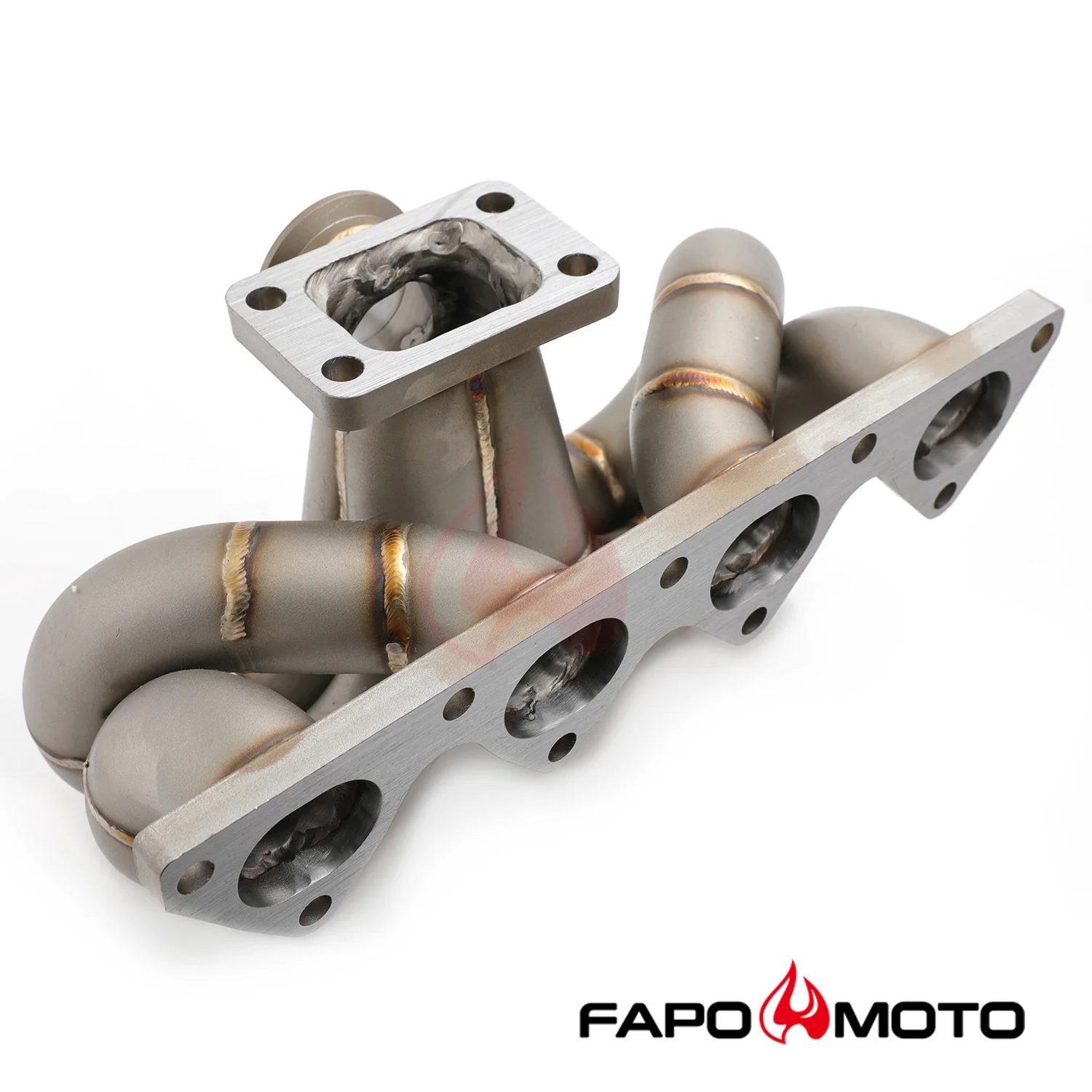

• Tubular manifold design with better exhaust flow and delivers more top end power
• Equal length runners for balanced exhaust reversion and enhanced turbo performance
• Precision aligned tubes made of schedule 40 cast 304 stainless steel

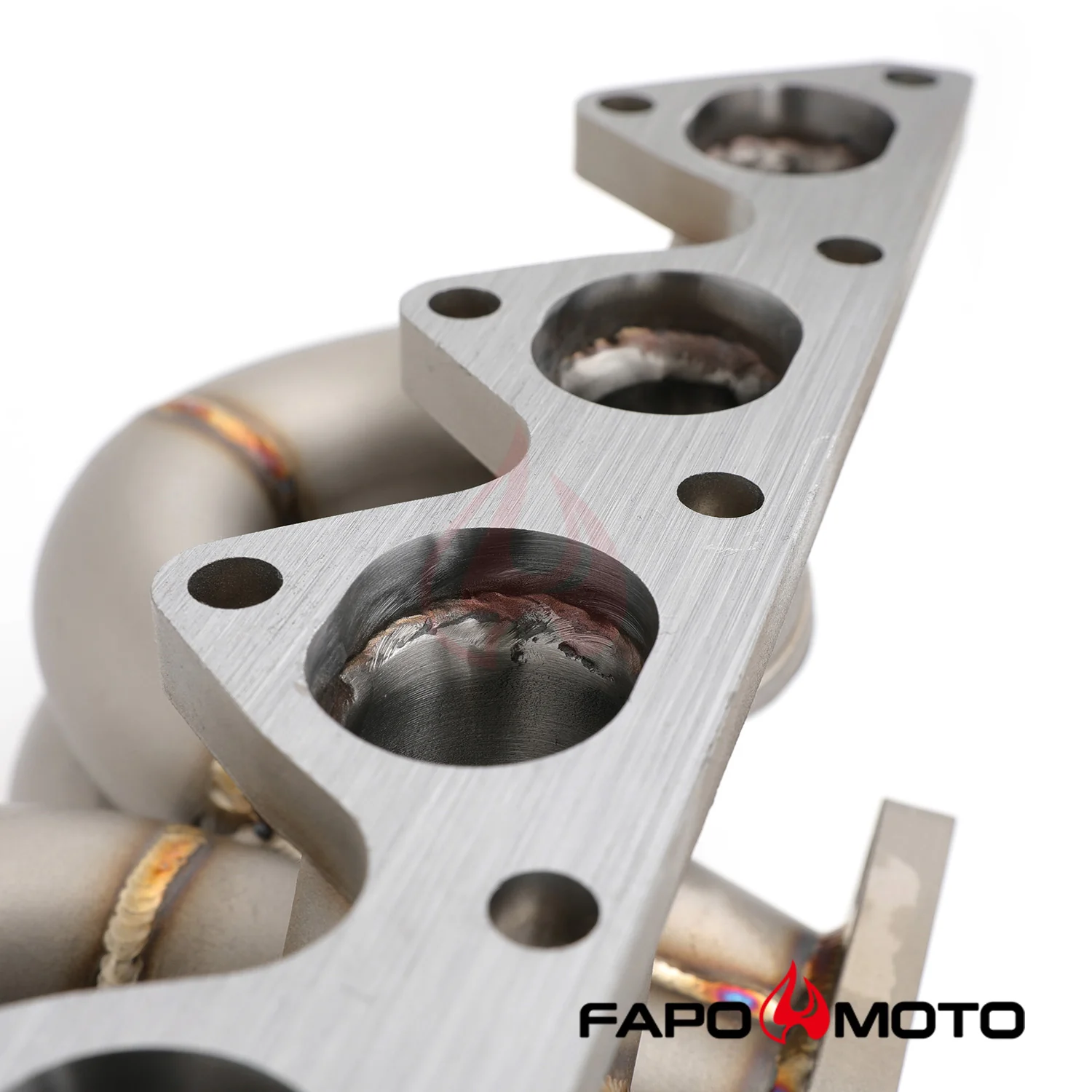

• Head flanges laser-cut from high quality 1/2-inch thick steel plates
• The flange is flattened by a hydraulic press for precise and leak free sealing
• All joints are golden color TIG brass style welded to prevent cracking and wear
• Flanges chrome plated for corrosion resistance
• Sandblasted surface for extra hardness

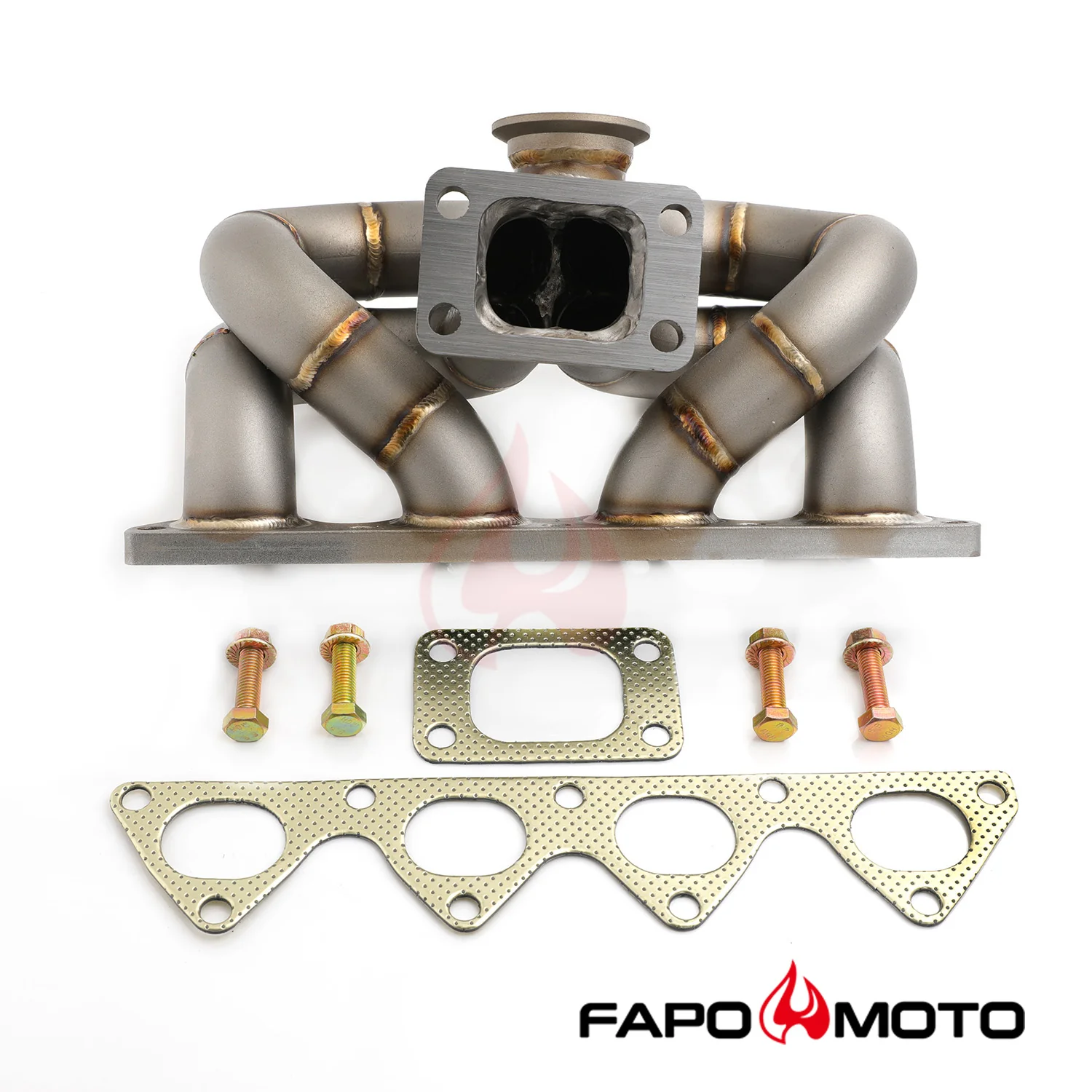

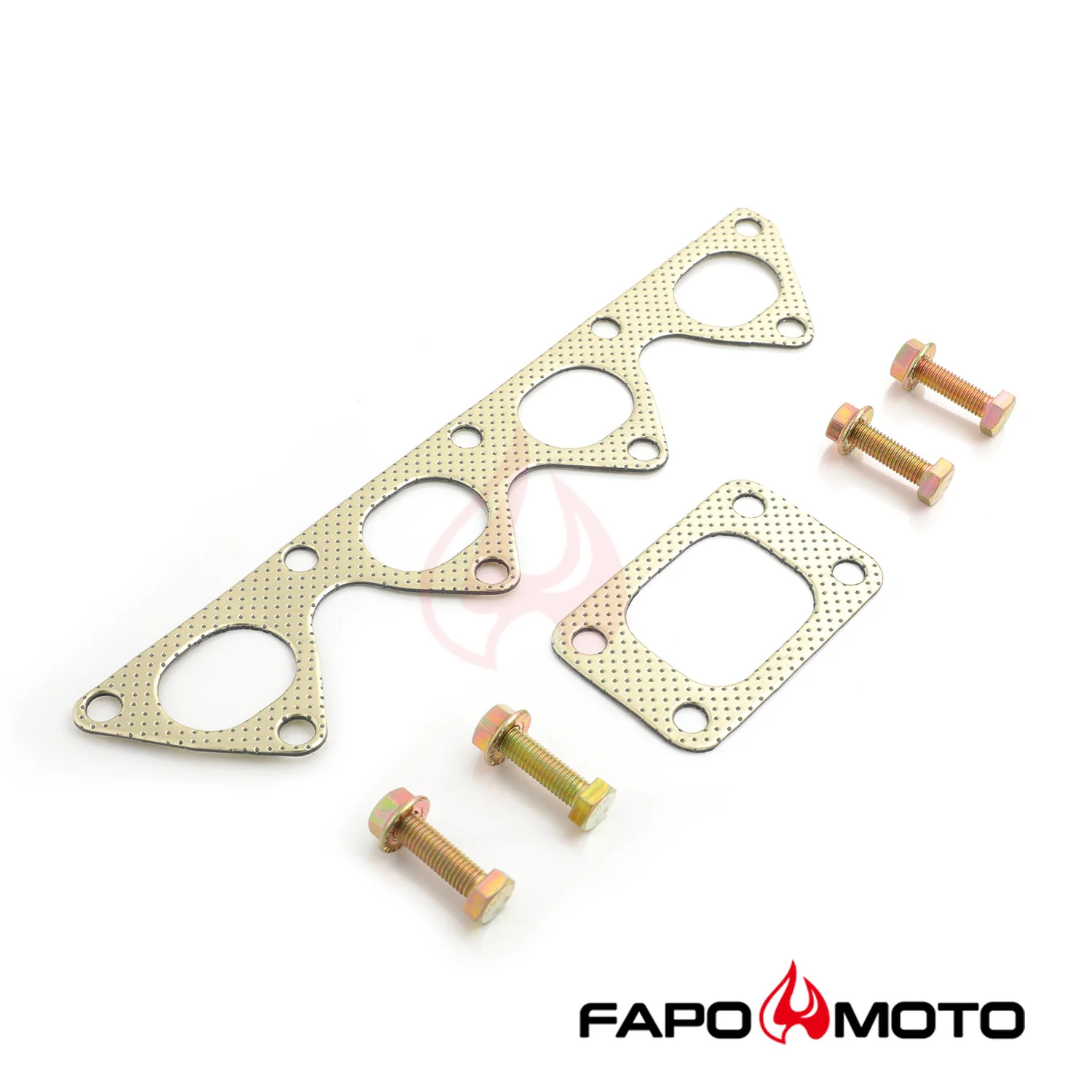

• The accessories in the photos are included
• 1 year warranty for any manufacturing defect
• No instructions provided; professional install recommended

Technical Specifications

• Manifold Type: Tubular Turbo Manifold
• Runner Diameter: 1-3/4 in. (45mm)
• Runner Layout: Equal Length

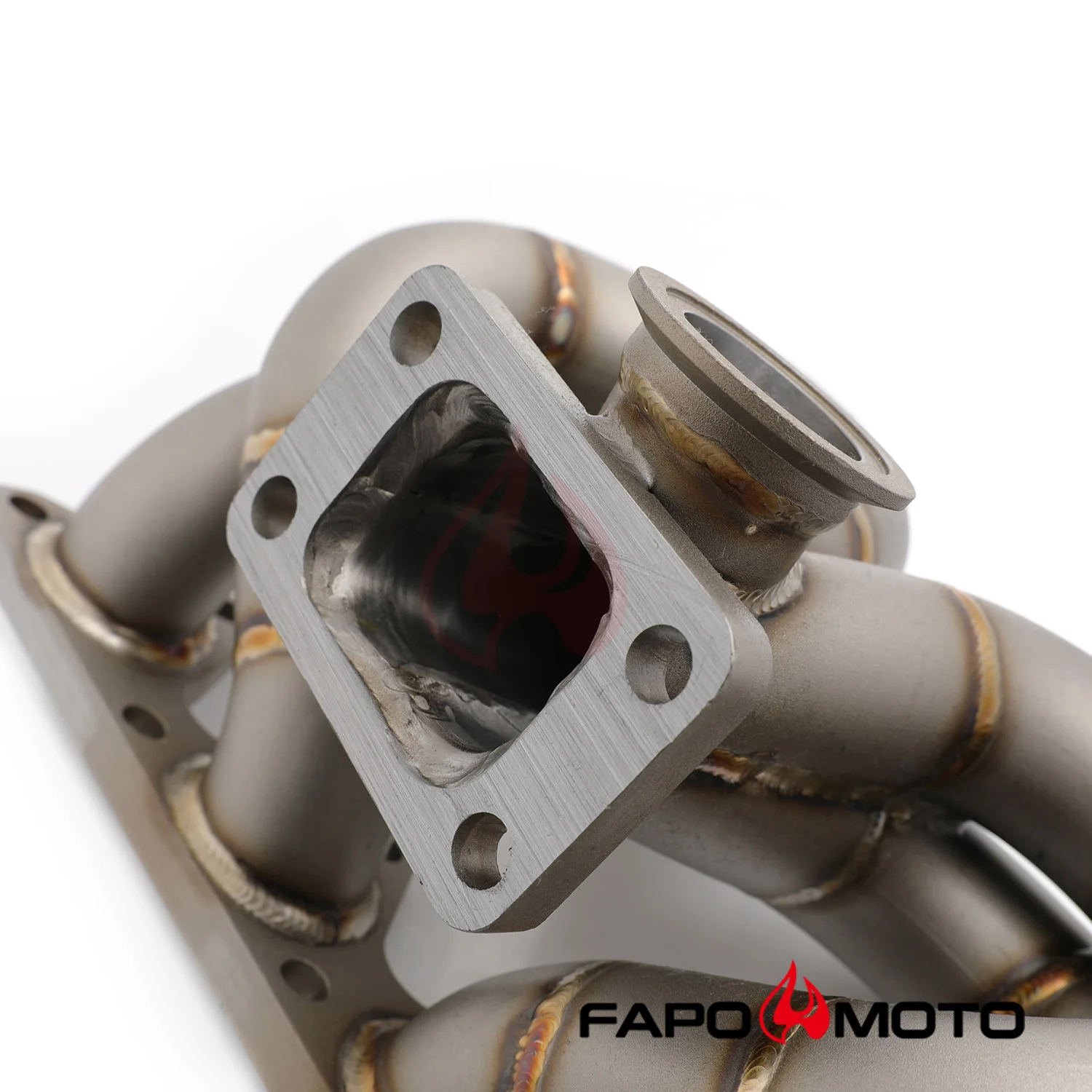

• Turbo Fitment: T3, T3/T4 Hybrid
• Turbo Mount Position: Low/Bottom Mount

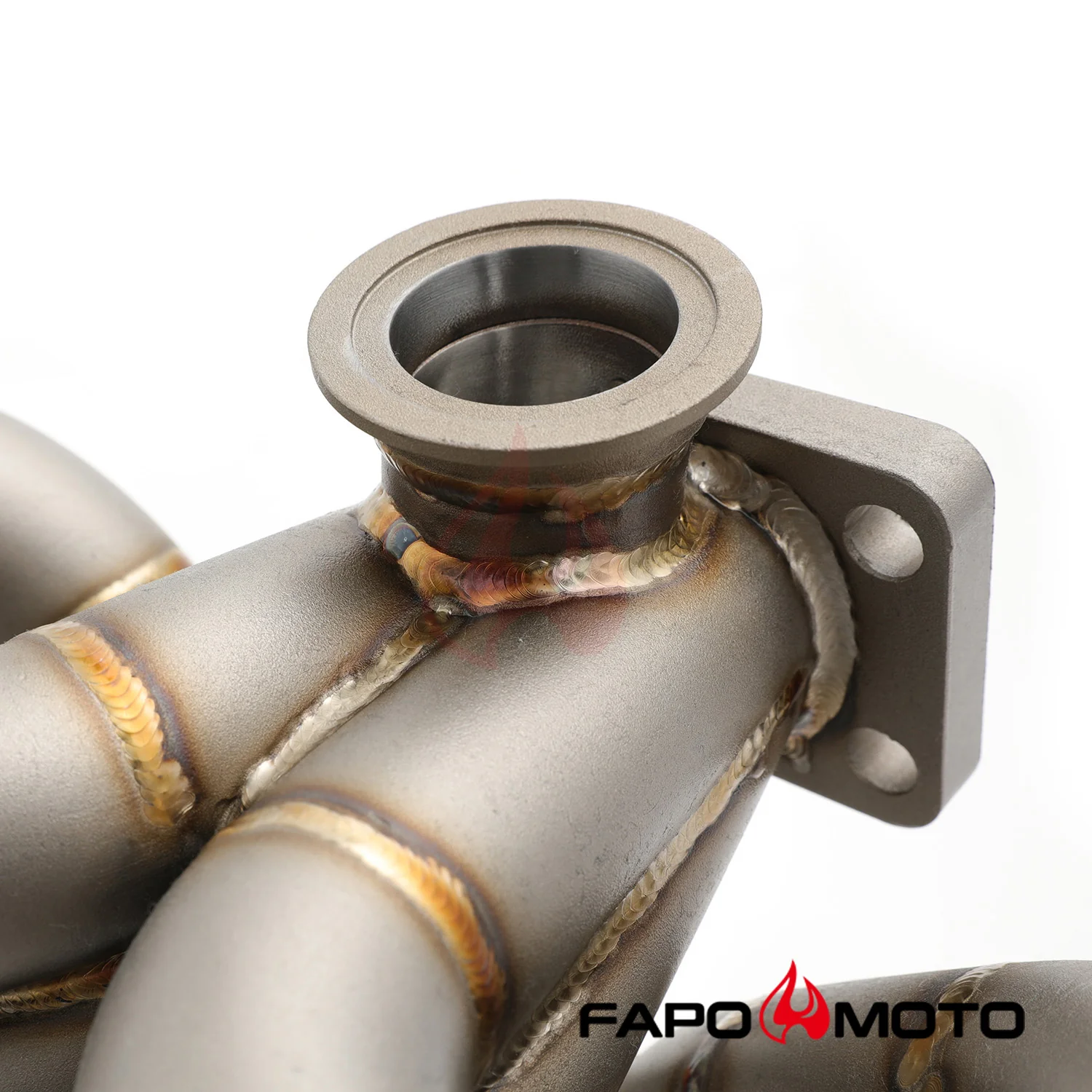

• Wastegate Fitment: 44mm (V-band)
• Head Flange Thickness: 1/2 in. (13.5mm)
• Pipe Thickness: Schedule 40 (3mm)
• Material: 304 Stainless Steel
• Finish: Sandblasted
